AMP OnePT has been formulated to generate flux residues that are pin testable while maintaining the unmatched ultra-low voiding standard set by the original AMP One paste. When coupled with SN100CV or LF-C2 alloys, AMP OnePT provides a high-reliability solution for harsh environments. AMP OnePT boasts flux activity that holds up to long reflow profiles and withstands thermally challenging board designs.
• Best in class voiding performance
• Pin testable flux residues which remain testable for over 5 days
• Excellent printability and activity
• Ideal reflow performance with excellent wetting, very low solder balling and graping
• Halide and halogen free which may improve long term reliability
• Passes JIS SIR, JIS ECM and Bellcore Telcordia SIR

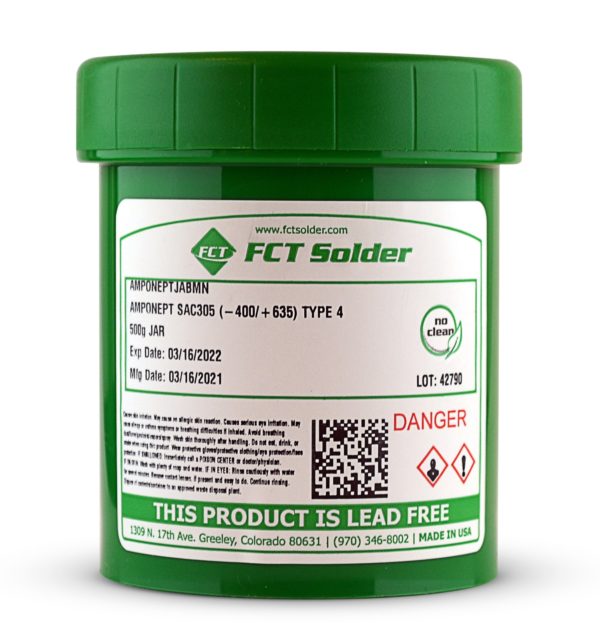

AMP OnePT
AMP OnePT has been formulated to generate flux residues that are pin testable while maintaining the unmatched ultra-low voiding standard set by the original AMP One paste. When coupled with SN100CV or LF-C2 alloys, AMP OnePT provides a high-reliability solution for harsh environments. AMP OnePT boasts flux activity that holds up to long reflow profiles and withstands thermally challenging board designs.
AMP OnePT TDS
AMP OnePT Product Manual
Amp OnePT Properties
• Best in class voiding performance
• Pin testable flux residues which remain testable for over 5 days
• Excellent printability and activity
• Ideal reflow performance with excellent wetting, very low solder balling and graping
• Halide and halogen free which may improve long term reliability
• Passes JIS SIR, JIS ECM and Bellcore Telcordia SIR
Description
Product Specifications
Flux Type: No Clean
Halogen Content: Halogen-Free
Lead Content: Lead-Free
Void Area: 1.3%
See How AMP OnePT Performs
Click to enlarge
Click to enlarge
Additional information
No Clean
Halogen-Free
Lead-Free
You may also like…

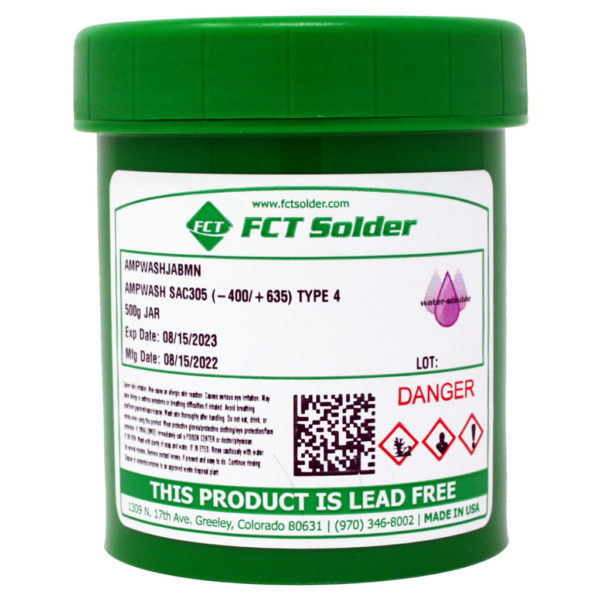

AMP Wash
